ROUND BALE CARRIER Models 1450, 2400, 2450

Bale moving just got a lot easier with Farm King round bale carriers, bale carriers that replace the old way of moving bales with a front-end loader and a flat-deck. Pick, haul and unload round bales with speed and efficiency, whether moving bales from the field or back to the farmyard.

Heavy duty construction means the bale carriers are robust, yet designed to be affordable with gentle bale handling and easy maintenance. Rugged durability, proven performance and easy unloading minimizes bale damage and reduces handling costs. A hand-held control works with the tractor remotes to operate all the functions of the bale carrier. The bale carrier uses two sets of tractor hydraulic outlets. Gentle yet rugged pickup arms place bales on the deck where a pusher, powered by two hydraulic motors, slides the bales back on graphite coated carrier beams. This means efficient bale handling, less stress and more bales moved each day.

Model	1450

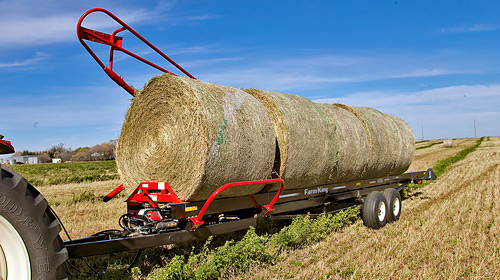

A single-row carrier can accommodate seven 5' x 6' bales, or eight 4' x 6'. Equipped with a single-sided pickup arm.
Capacity	GVW: 18,720 lb (8,491 kg) Eight - 4' (1.2 m) wide bales Seven - 5' (1.5 m) wide bales
Tractor	60 hp (45 kW) at 12,480 lb (5,660 kg) Maximum recommended speed when loaded is 20 mph (32 km/hr)
Deck length	37' (11.3 m)
Overall length	44' (13.4 m)
Transport width	8.5' (2.6 m)
Weight	5,495 lb (2,498 kg)

Model	2400

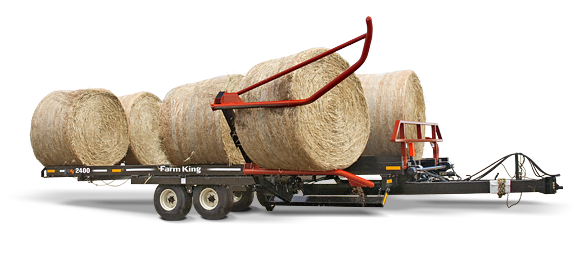

The double wide, short model is ideal for picking bales in hilly terrain, with a capacity of up to ten 4' x 6' or eight 5' x 6' bales.
Capacity	GVW: 18,720 lb (8,491 kg) Ten - 4' (1.2 m) wide bales Eight - 5' (1.5 m) wide bales
Tractor	80 hp (60 kW) at 12,480 lb (5,660 kg) Maximum recommended speed when loaded is 20 mph (32 km/hr)
Deck length	26' (7.9 m)
Overall length	34' (10.4 m)
Transport width	12.7' (3.8 m)
Weight	6,600 lb (2,995 kg)

Model	2450

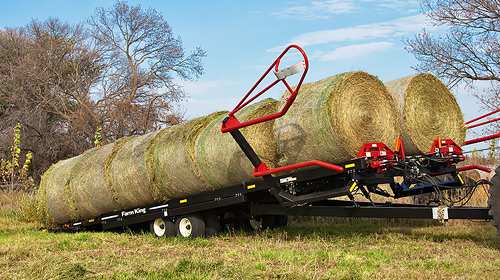

With a capacity of up to sixteen 4' bales, fourteen 5' bales, the 2450 minimizes the number of trips out to the field.
Capacity	GVW: 37,440 lb (16,983 kg) Sixteen - 4' (1.2 m) wide bales Fourteen - 5' (1.5 m) wide bales
Tractor	100 hp (60 kW) at 25,000 lb (11,340 kg) Maximum recommended speed when loaded is 20 mph (32 km/hr)
Deck length	37' (11.3 m)
Overall length	45' (13.7 m)
Transport width	12.75' (3.9 m)
Weight	9,587 lb (4,348 kg)

All Specifications

Features

THE RIGHT SIZE
The right size and the right features The 1450 round bale carrier can carry seven 5' by 6' bales weighing up to 900 kg (2,000 lb) each in a single row. The double wide Farm King 2450 has twice the capacity. Ideal for hilly terrain the shorter, more maneuverable 2400 can carry ten 4' x 6' round bales. Heavy-duty construction means the bale carriers are robust, yet designed to load and unload bales quickly and without damage. Lower bale handling costs and simple maintenance help improve the profitability of your hay.

DECK
The heavy duty undercarriage and tandem walking beam axles ensure reliable transport to the unloading area. To unload, the operator tilts the carrier deck using the tractor control. Once the rear of the deck is on the ground, the pusher, controlled with the hand-held remote, unloads the bales in tight end-to-end rows.

PUSHER
After bales are lifted onto the deck, a pusher moves the bales rearward. The pusher has two settings that are selected on the hand held remote. The operator can choose the most efficient speed and torque for varying conditions: ‘high’ for dry hay and straw; ‘low’ provides additional torque for wet or high moisture silage bales, and the pusher moves with less speed.

PICKUP ARMS
Gentle yet rugged pickup arms place bales on the deck where a pusher, powered by two hydraulic motors, slides the bales back on graphite coated carrier beams (models 1450, 2450). This means efficient bale handling, less stress and more bales moved each day.

Standard Arm

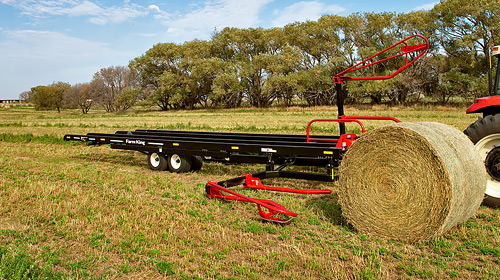

The 1450S, 2400S and the 2450S feature standard pickup arms. A bale deflector is built into the outer fork which means bales can be picked up from either the ‘end-on’ or ‘side-on’ position. This allows the operator to approach the bale from any angle.

Model 2400 features a right-hand side pickup arm while model 2450 is equipped with both left-hand and right-hand side pickup arms for even more maneuverability and convenience. Model 2400 features an optional bale stop indicator for use with more narrow bales (4').

Rotating Pickup Arm

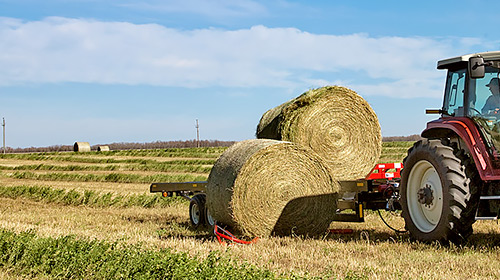

The 1450R and 2450R are equipped with rotating pickup (RPU) arms with forks that hydraulically squeeze, rotate and lift bales onto the deck for ‘side-on’ picking. This allows the operator to follow the travel of the baler.

Manuals

Model 1450	Date Posted
Operator and Parts - 2018	October 2018
Operator and Parts - 2013	June 2013
Operator and Parts - 2011	April 2011

Model 1450H	Date Posted
Operator and Parts - 2017	September 2017

Model 2400	Date Posted
Operator and Parts - 2018	October 2018
Operator and Parts - 2016	March 2016
Operator and Parts - 2013	May 2013
Operator and Parts - 2012	November 2012
Operator and Parts - 2012	March 2012

Model 2400H	Date Posted
Operator and Parts - 2017	September 2017

Model 2450	Date Posted
Operator and Parts - 2018	October 2018
Operator and Parts - 2013	March 2013
Operator and Parts - 2012	April 2012
Operator and Parts - 2011	October 2011
Operator and Parts - 2011	April 2011

Manuals: Past Models

Model 1500	Date Posted
Operator and Parts - 2008	July 2008
Operator and Parts - 2004 (3)	January 2005
Operator and Parts - 2004 (2)	December 2004
Operator and Parts - 2004	March 2004

Model 2500	Date Posted
Operator and Parts - 2008	April 2008
Operator and Parts - 2004 (2)	December 2004
Operator and Parts - 2004	March 2004

Model 2000	Date Posted
Operator and Parts - 1999	August 2012

Model 1000	Date Posted
Operator and Parts - 1998	September 2013
