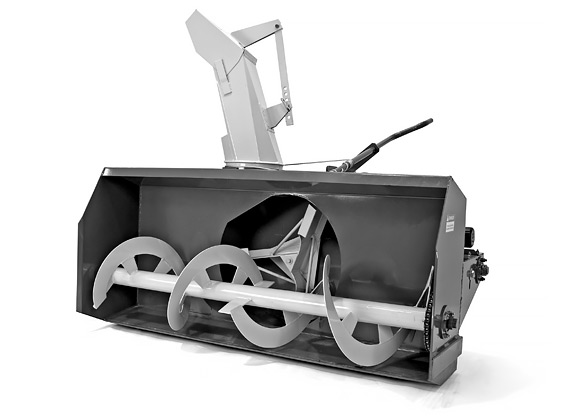

ALLIED SNOWBLOWER Models 5010, 6010, 6610, 7420, 8420, 9620, 1080, 1200
ALLIED BY FARM KING HAS BEEN RESPONSIBLE FOR BUILDING RELIABLE SNOWBLOWERS FOR MORE THAN THREE DECADES.
Through the years the design has been refined to create an excellent snowblower that is easy to use and maintain. PTO- driven Allied snowblowers attach to 3-point hitch and are available in widths ranging from 50" to 120".
| Model | Specs |
|---|---|
| 5010 | Cutting width / height - 50" / 25" Weight 422 lb - 15-30 hp |
| 6010 | Cutting width / height - 60" / 25" Weight 470 lb - 20-40 hp |
| 6610 | Cutting width / height - 66" / 24" Weight 515 lb - 20-40 hp |
| 7420 | Cutting width / height - 74" / 25" Weight 756 lb - 40-70 hp |
| 8420 | Cutting width / height - 84" / 25" Weight 848 lb - 60-90 hp |
| 9620 | Cutting width / height - 96" / 36" Weight 1243 lb - 90-125 hp |
| 1080 | Cutting width / height - 108" / 41" Weight 2398 lb - 120-180 hp |
| 1200 | Cutting width / height - 120" / 41" Weight 2600 lb - 180-225 hp |
Features
- SPOUT DEFLECTOR
The spout deflector can be equipped with a hydraulic cylinder kit or a 6-position manual adjustment.
- FAN
A 4-blade fan is standard on all models. Dual augers are standard on model widths 96" to 120".
- GEARBOX
The oil bath gearbox, available on 84", 96", 108" and 1200 models, adds longevity.
- SPOUT ROTATOR
The spout rotator is available with manual or hydraulic positioning.
- HITCH
Most models feature an adjustable hitch that is designed to adapt to 3-point hitches of varying lengths and heights, which reduces stress on the PTO shaft.
- SKID SHOES
Adjustable/replaceable skid shoes are standard on all models.
Manuals
| Model 5010, 6010, 6610 | Date Posted |
|---|---|
| Operator and Parts Manual - 2019 | Janary 2020 |
| Operator and Parts Manual - 2016 | April 2016 |
| Operator and Parts Manual - 2014 | April 2014 |
| Operator and Parts Manual - 2014 | March 2014 |
| Operator and Parts Manual - 2013 | September 2013 |
| Assembly (Electric Spout Rotation Kit Instructions) - 2013 | February 2014 |
| Operator and Parts Manual - 2013 | April 2013 |
| Operator and Parts Manual - 2012 | July 2012 |
| Operator and Parts Manual - 2011 | November 2011 |
| Operator and Parts Manual - 2010 | November 2010 |
| Operator and Parts Manual - 2009 | May 2008 |
| Operator and Parts Manual - 2008 | April 2007 |
| Operator and Parts Manual - 2007 | June 2006 |
| Operator and Parts Manual - 2006 | February 2005 |
| Operator and Parts Manual - 2005 | November 2004 |
| Operator and Parts Manual - 2004 | July 2003 |
| Model 7420 8420 8420G | Date Posted |
|---|---|
| Operator and Parts Manual - 2019 | January 2020 |
| Operator and Parts Manual - 2017 | April 2016 |
| Operator and Parts Manual - 2016 | April 2014 |
| Operator and Parts Manual - 2014 | March 2014 |
| Operator and Parts Manual - 2014 | September 2013 |
| Operator and Parts Manual - 2013 | April 2013 |
| Operator and Parts Manual - 2012 (3) | July 2012 |
| Operator and Parts Manual - 2012 (2) | November 2011 |
| Operator and Parts Manual - 2012 (1) | November 2010 |
| Operator and Parts Manual - 2011 | May 2008 |
| Operator and Parts Manual - 2010 | April 2007 |
| Operator and Parts Manual - 2009 | June 2006 |
| Operator and Parts Manual - 2008 | February 2005 |
| Operator and Parts Manual - 2007 | November 2004 |
| Operator and Parts Manual - 2006 | July 2003 |
| Operator and Parts Manual - 2005 | July 2003 |
| Operator and Parts Manual - 2004 | July 2003 |
| Binary Snowblower | Date Posted |
|---|---|
| Operator and Parts Manual - 2019 | October 2020 |
| Model 85" | Date Posted |
|---|---|
| Operator and Parts Manual - 2010 | November 2010 |
| Operator and Parts Manual - 2009 | May 2008 |
| Operator and Parts Manual - 2008 | April 2007 |
| Operator and Parts Manual - 2007 | June 2006 |
| Operator and Parts Manual - 2006 | February 2005 |
| Operator and Parts Manual - 2005 | November 2004 |
| Operator and Parts Manual - 2004 | July 2003 |
| Model 96" | Date Posted |
|---|---|
| Operator and Parts Manual - 2018 | January 2020 |
| Operator and Parts Manual - 2017 | July 2017 |
| Operator and Parts Manual - 2016 | May 2016 |
| Operator and Parts Manual - 2015 | January 2015 |
| Operator and Parts Manual - 2014 | April 2014 |
| Operator and Parts Manual - 2014 | March 2014 |
| Operator and Parts Manual - 2013 | March 2013 |
| Operator and Parts Manual - 2012 (2) | July 2012 |
| Operator and Parts Manual - 2012 (1) | February 2012 |
| Operator and Parts Manual - 2011 | June 2011 |
| Operator and Parts Manual - 2010 | November 2010 |
| Operator and Parts Manual - 2009 | May 2008 |
| Operator and Parts Manual - 2008 | April 2007 |
| Operator and Parts Manual - 2007 | June 2006 |
| Operator and Parts Manual - 2006 | February 2005 |
| Operator and Parts Manual - 2005 | November 2004 |
| Operator and Parts Manual - 2004 | July 2003 |
| Model 108" & 120" | Date Posted |
|---|---|
| Operator and Parts Manual - 2019 | January 2020 |
| Operator and Parts Manual - 2012 | August 2012 |
| Operator and Parts Manual - 2010 | November 2010 |
| Operator and Parts Manual - 2009 | May 2008 |
| Operator and Parts Manual - 2008 | May 2007 |
| Operator and Parts Manual - 2007 | June 2006 |
| Operator and Parts Manual - 2006 | March 2005 |
| Operator and Parts Manual - 2005 | August 2004 |
| Operator and Parts Manual - 2004 | July 2003 |
